Flow pack

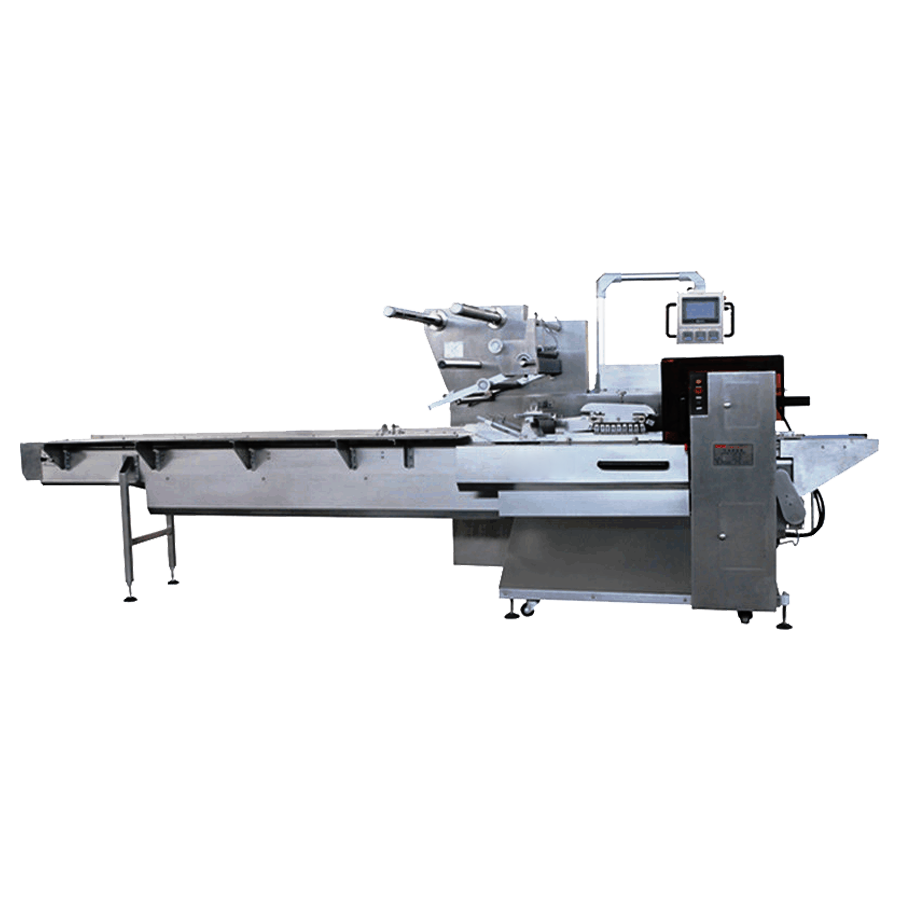

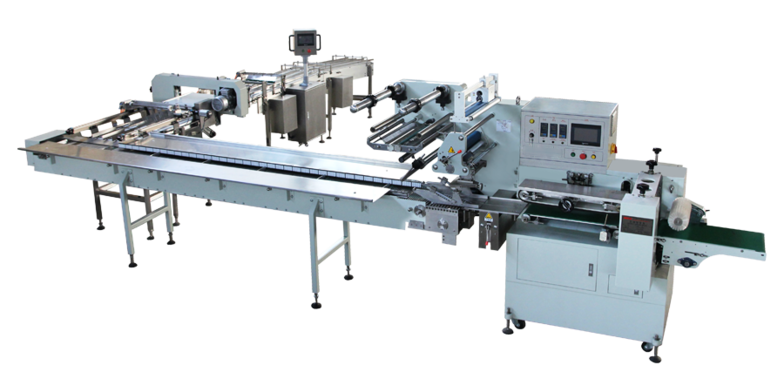

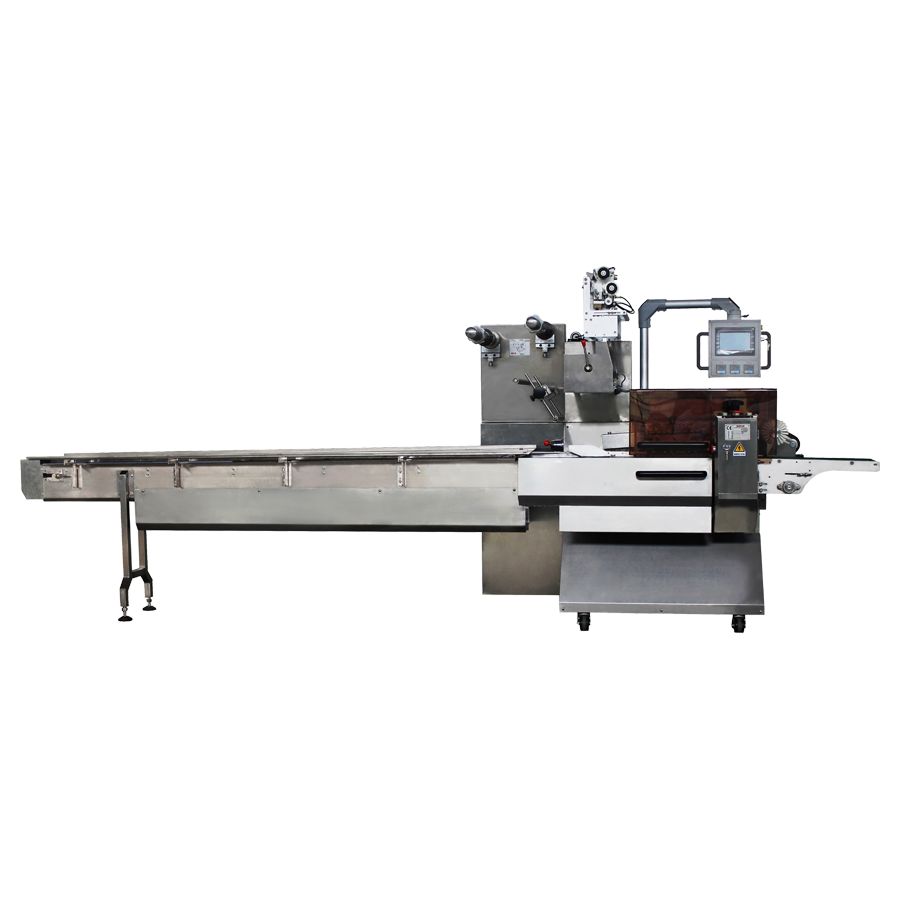

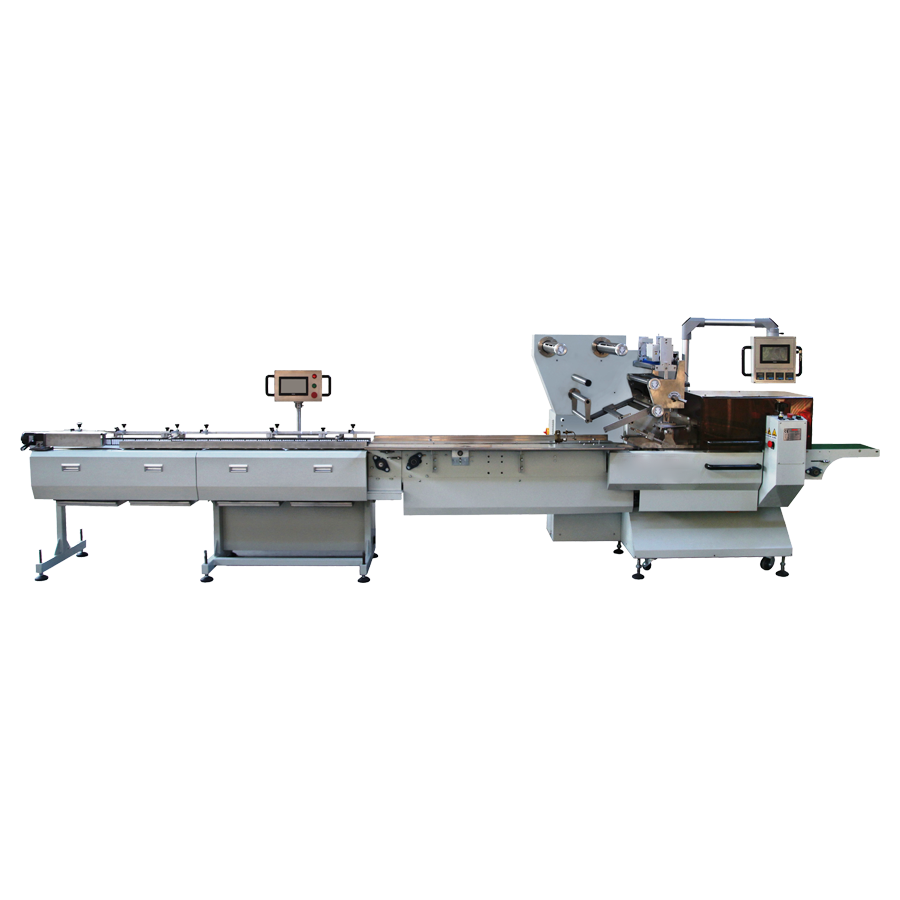

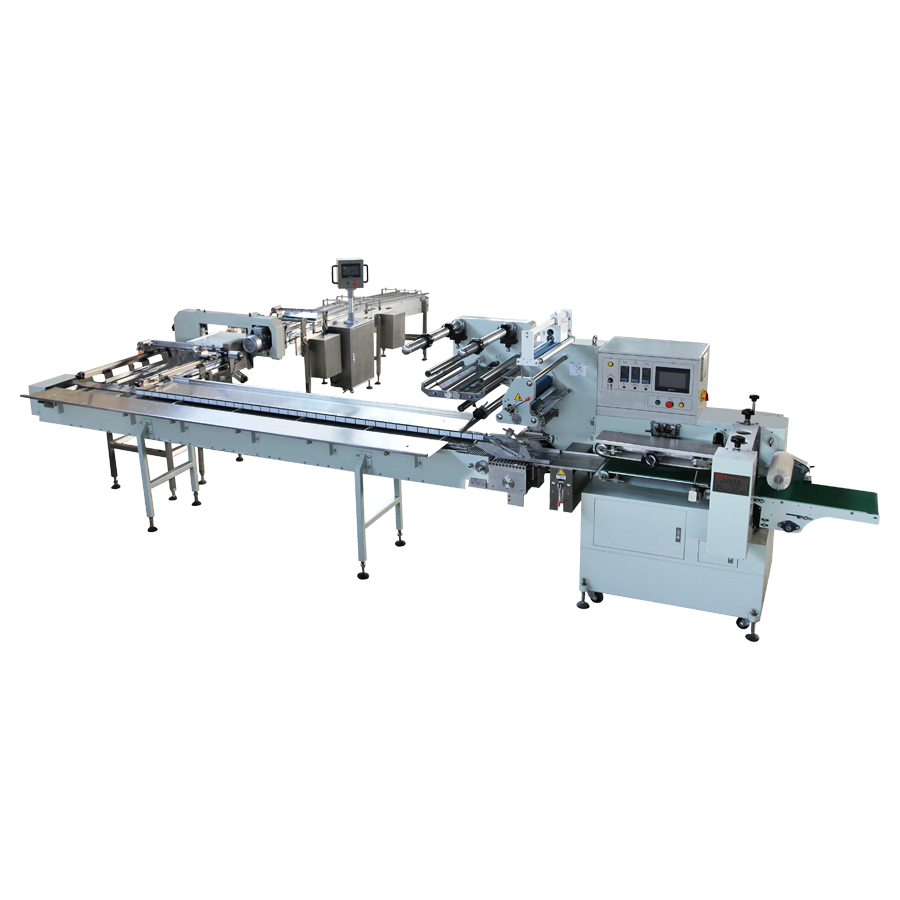

The BOSS450 it represents an excellent solution for forming and sealing automatically bags of various shapes and sizes which are produced from a flat reel of heat-sealable packing film. The particular hardware configuration allows the machine to achieve up to 160 packs per min.

The BOSS450 is equipped with PLC Control System and Touch Screen Operation Interface. The system enables the operator, via a user-friendly interface, to enter machine parameters as well as access the machine status and operating conditions.

The BOSS450 is equipped PID Control Temperature, making the seal at a low temperature to raise the packing speed and reduce the film burning.

The BOSS450 is equipped three servo motors. One is controlled the center sealer and film; the other one is controlled the end sealer; the third one is controlled infeeder.

BOSS series packaging machine is a type machine, which has wide use range and stable characters. This type machine can achieve to wrap several kinds of products on one machine and it is a machine with high running speed. In this case there is a high request for the machine’s strength and stability or the machine life will be reduced and the packing precision is lower due to long time running.

As BOSS series packaging machine adopt the 12mm thickness steel board and the total weight is about 1000kg. So in the high speed, the machine can also have a stable running situation and long running life.

BOSS series used Servo motor controlled the cut length and film running.

Main Features

  • Display the packaging speed and length automatically, insuring cut-off accuracy.
  • User-friendly Imported PLC interface allowing for multilingual operation and access restriction features.
  • Comprehensive synchronization for date printer (optional) and feeding systems.
  • Panasonic Servo motor controlled the cut length and film running.
  • Servo motor realizing the step-less control, dynamic adjustment in operation. High sensitivity photoelectric eye color tracking, numerical input of cutting sealing position for extra accuracy.
  • Adjustable bag former, could set short and long distance between fork spreader settings, which are convenient for changing product.
  • New type vertical seal heating, can seal at a low temperature and avoid burning film effectively. Simple driving system, reliable working, convenient maintenance.
  • Nitrogen Filling Device. When after nitrogen filling the bread will be fresher and the storage will be longer.
  • No empty bags. When there is no product on the infeeder, the film will stop and wait the products coming.
